DeepSeek-V4.1-Flash on NVIDIA vLLM: GPU Inference Path

Repository: vllm-project/vllm at commit 02aa10539f15c8c73aa7fd4a5ee0f691cbf88dcb (GitHub origin, detached clean checkout; pin date 2026-10-10).
Inspection: 2026-10-17; static code reading only.
Scope: the NVIDIA GPU worker path from receiving a SchedulerOutput to returning sampled token IDs in AsyncOutput / ModelRunnerOutput. The OpenAI request renderer, detokenizer, and HTTP response layer are outside this map.

Related pages: DeepSeek-V4.1-Flash report, DeepSeek V4 attention code map, vLLM hub.

TL;DR

The checkpoint architecture resolves to the V4.1-specific model package, but the text stack reuses V4-named implementation classes. The runner supplies token rows, paged-cache slots, and model-specific attention metadata; the checkpoint config decides which layers publish compressed key/value (KV) or sparse-index state; the selected GPU backend reads that global state together with each layer’s sliding-window attention (SWA). This split exists because sparse attention pays off only when choosing where to attend is cheaper than attending everywhere: scoring a query against every past token at full resolution would cost as much memory bandwidth as dense attention, so V4.1 keeps a small compressed cache as a coarse index, scores it to pick top-k positions, and spends exact attention only on those positions plus the recent window. Manifold-constrained hyper-connections (mHC) carry the multi-stream residual state, and mixture-of-experts (MoE) layers process the feed-forward network (FFN) path. The worker returns sampled token IDs, not detokenized text.

“Flash” is part of the checkpoint name, not a fixed attention-kernel choice. Backend selection is separate: the SM120 and SM100 automatic paths have different kernels and different behavior when a required kernel is unavailable. The GPU branch comparison makes that split explicit. Both implement sparse Multi-head Latent Attention (MLA).

Evidence boundary: all paths below are inferred from the pinned source. The checkpoint’s exact layer arrays and runtime backend were not loaded, and no NVIDIA GPU execution was performed.

Report boundary: The technical report draws a causal text encoder and decoder. This scoped vLLM code reading finds one text-model decoder-layer stack and an image encoder, but no separate causal text-encoder stage. The report figure is a model-design reference, not a verified call graph for this worker path. See the implementation boundary.

Mental Model

The scheduled batch determines which token rows advance and where new cache entries may be written. The model config determines which layers own compressed KV and indexer state. The sparse indexer selects old global positions; the attention backend combines them with recent SWA state. The layer returns through grouped output projection, mHC, and MoE before the runner samples a token.

The three attention caches form a precision-and-resolution hierarchy. Local SWA KV is exact but covers only the recent window. The compressed main KV covers the whole context at one state per compress_ratio tokens. The index-K cache is a tiny FP8/MXFP4 scoring copy used only to choose positions. Selection indices live in compressed-state units, not token positions: index i covers tokens i·r through (i+1)·r − 1 for compress_ratio = r. The backend expands the selected states, unions them with the always-on SWA window, and only then reads the main KV.

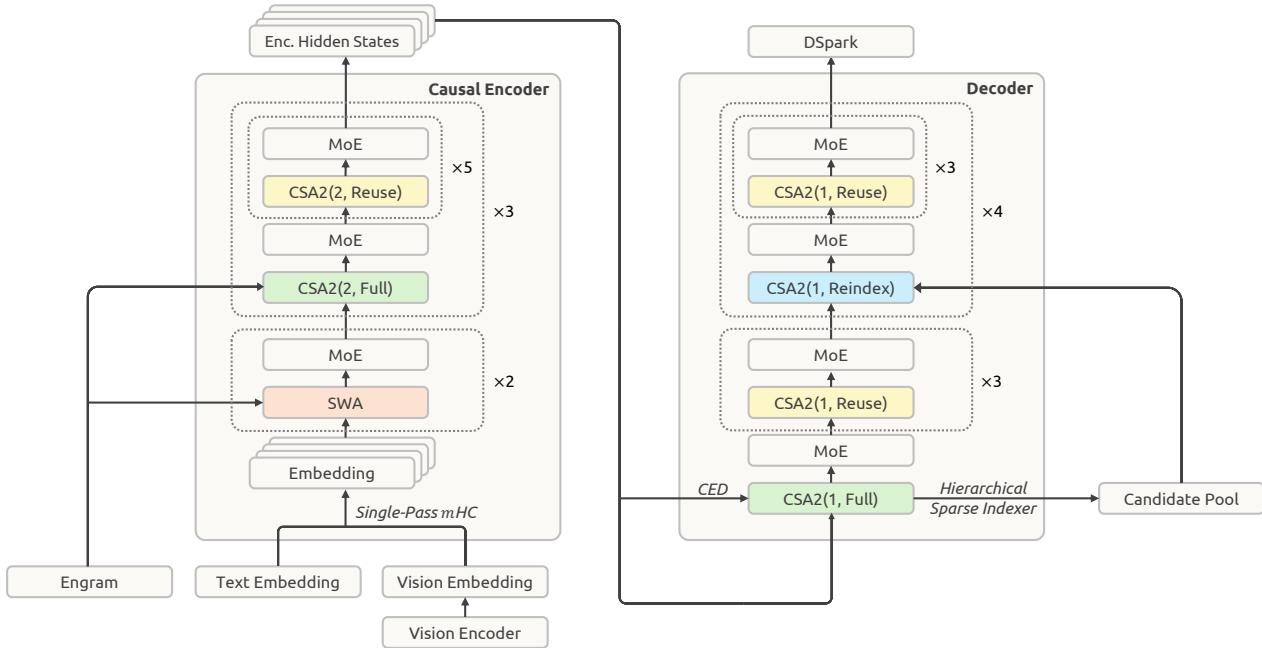

The report’s architecture gives the high-level model-design view. Read its left panel as the proposed causal encoder and its right panel as the decoder; the CSA2 groups, local SWA, MoE, and mHC labels provide context for the code trace below. This pinned vLLM inspection follows the decoder stack but does not verify a separate causal text-encoder stage in the GPU worker path.

Source: Figure 3 of the DeepSeek-V4.1-Flash technical report, also explained in the report synthesis. This is the report’s model-design figure, not a verified vLLM worker call graph.

This is a worker-level trace, not a complete chat-server trace. Its boundary is the SchedulerOutput received by GPUModelRunner.execute_model; its return boundary is the asynchronous worker output sent back to the caller.

SM100 and SM120 GPU Branches

At model construction, the V4.1 attention selector checks an explicit backend choice before applying these automatic defaults:

GPU path in this pin	Automatic attention class	If the preferred path is unavailable
SM120 (the selector tests compute-capability major 12)	FlashInfer SM120 sparse MLA	A missing V4 sparse-MLA specialization raises during initialization; the automatic path does not retry FlashMLA.
SM100 family	FlashMLA Mega when its kernel and local-head / tensor-parallel topology are eligible	The selector uses FlashMLA sparse MLA when Mega is ineligible.

An explicit supported backend can select another class; the selector rejects the generic FlashInfer sparse-MLA enums for this model. The detailed backend table and code links show the implementation and gates. The single-token walkthrough below chooses the FlashMLA branch as a concrete example; it is not a claim that either GPU automatically selects FlashMLA in every configuration.

KV cache layout by backend

Every attention layer owns local SWA KV. Only a configured KV-source layer owns compressed main KV; consumers read that source’s cache. Index K is a separate cache for scoring, and the shared top-k buffer holds selected positions rather than KV records (main-KV ownership, index-K ownership).

With generic --kv-cache-dtype auto or fp8, the dtype resolver uses each backend’s preferred packed format. These are record widths, not the model’s total KV bytes per input token:

Automatic backend branch	Resolved packed dtype	Local SWA record, per token	Compressed main-KV record, per stored state
SM100 FlashMLA Mega	nvfp4_ds_mla	528 B V4.1 block-scaled FP8	288 B NVFP4
SM100 FlashMLA fallback	fp8_ds_mla	528 B V4.1 block-scaled FP8	528 B V4.1 block-scaled FP8
SM120 FlashInfer	fp8_ds_mla	584 B V4 mixed FP8 NoPE / BF16 RoPE	584 B V4 mixed FP8 NoPE / BF16 RoPE

The same fp8_ds_mla dtype string therefore does not mean the same record bytes on SM100 and SM120. The GPU-family record switch and record-size calculation set those widths. Mega prefers NVFP4 only for compressed main KV; its SWA record stays FP8 (Mega cache dtype). For compress_ratio = 2, one compressed state represents two tokens; page padding, source-layer count, and index K also affect total memory. The index-K cache is a third, smaller store with one key per compressed position, kept in FP8 or MXFP4 depending on attention_config.indexer_kv_dtype (indexer cache dtype).

The decode calls consume these caches differently: Mega passes paged byte records and slot indices to its fused kernel (Mega decode); FlashMLA passes separate SWA and compressed cache tensors with their own indices (FlashMLA decode); SM120 FlashInfer presents both paged caches as NHD sparse views and passes local SWA and global sparse indices separately (FlashInfer decode). Explicitly selecting FlashInfer on SM100 uses a different, plain BF16 or per-tensor FP8 row layout, not the SM120 packed layout (SM100 FlashInfer class).

Follow One Decode Token

Consider a text-only, non-speculative decode step on the last pipeline rank. For the attention detail, follow a layer with compress_ratio > 0, a configured index-source layer that refreshes selection, a context long enough to score candidates, the standard CUDA indexer (indexer_sparse_logits disabled), and the FlashMLA backend. These conditions select one code branch for reading; the checkpoint’s actual layer assignments and the runtime backend were not verified. A Reuse layer skips the indexer call and reads the most recent selection instead. (Shorter contexts take a select-all fallback: when the compressed-candidate count fits in the top-k budget, a small kernel marks every candidate selected without running the scoring kernel — select-all fill.)

The diagram answers one state question before the code trace: which layer publishes each cache input, and where do those inputs meet? The three cache lanes are roles, not necessarily three different layers. KV-source and index-source roles can coincide in one layer.

Synthesized explanation of the pinned vLLM FlashMLA decode branch. Arrows show state handoffs, not kernel launch order. The checkpoint’s source-layer assignments and actual runtime backend were not verified. Follow the revision-aware code links in the trace below for each handoff. Editable Draw.io source.

Read the top row from SchedulerOutput to the decoder, then the three amber lanes: each attention layer has local SWA state, configured KV sources publish compressed KV, and configured index sources refresh shared top-k positions. Those positions select cache entries for FlashMLA; they are not the sampled token. Follow the right side through layer output, logits, and the GPU sampler to the worker return.

Step	Input → state change → output	Where to read
1	SchedulerOutput → scheduled rows, block tables, and slot mappings → InputBatch	execute_model
2	InputBatch and cache groups → attention metadata and model inputs → wrapper call	prepare_attn, model_inputs
3	Layer hidden state and position → Q and local SWA KV; a KV source publishes compressed main KV, and an index source that also owns KV publishes index K → cache entries for this step	prepare and insert
4	Index query and index-K cache → sparse scores and selection → shared top-k buffer holding compressed-state positions (index i covers tokens i·r … (i+1)·r − 1 for compress_ratio = r); only an index-source layer refreshes it	indexer handoff, CUDA top-k write
5	Q, shared top-k, compressed KV, and local SWA KV → FlashMLA decode → attention output buffer	map indices, attention call
6	Attention output → grouped projection, mHC, MoE, final collapse and norm → model hidden states	decoder layer, collapse
7	Selected hidden row → logits → sampled token ID; request state and connector output are updated before AsyncOutput returns	logits, sample_tokens, worker return

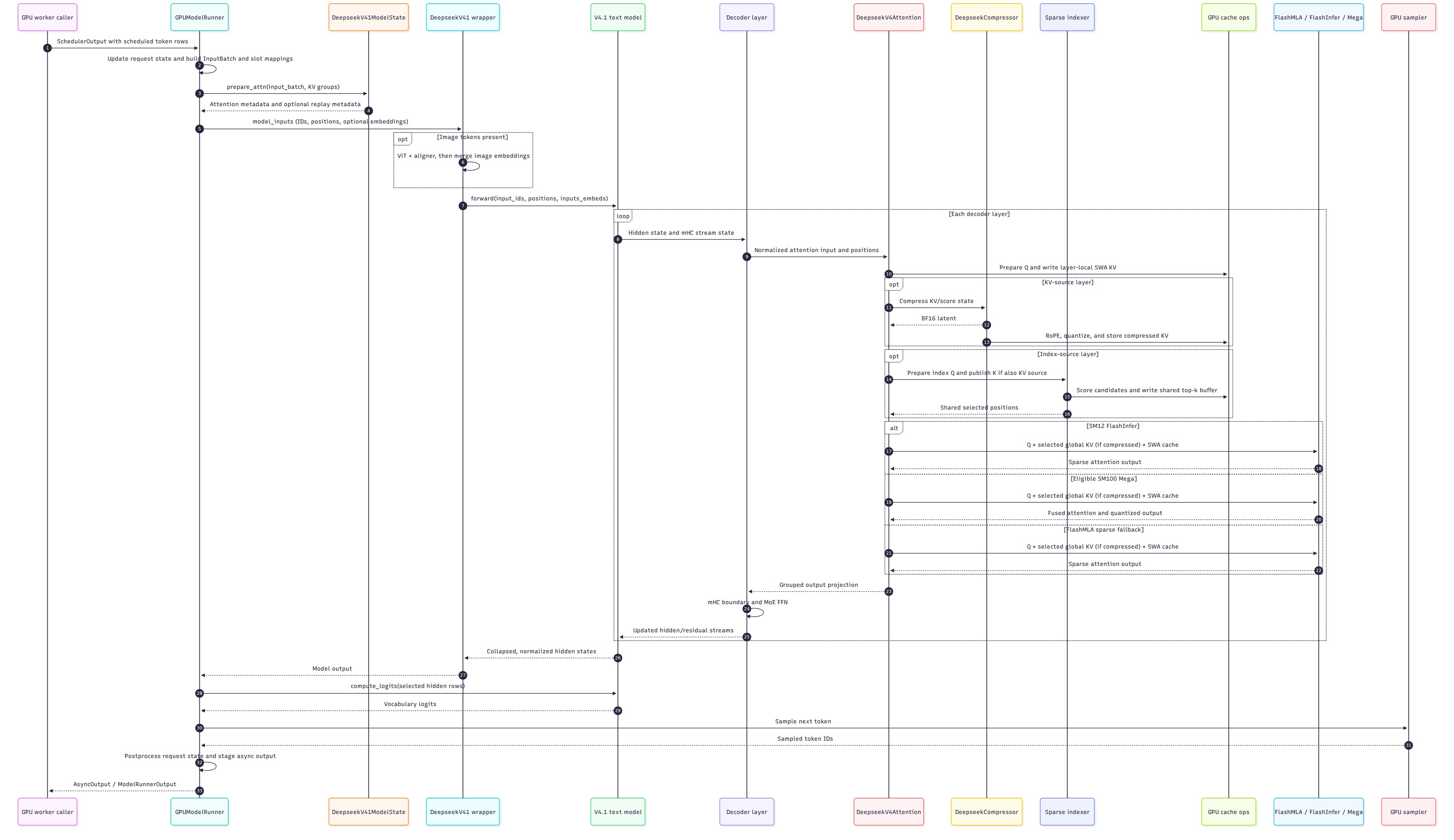

Request Round Trip

Rendered from the editable Mermaid source. Open the JPG at full size to follow the numbered handoffs; optional branches show paths outside the single-token FlashMLA walkthrough above.

The detailed diagram includes optional image processing and hardware branches. Use the single-token trace above for the main state changes; the links below provide revision-aware evidence for each handoff.

1. Resolve the checkpoint at load time

The HF deepseek_v41 model type maps to DeepseekV41Config (config mapping, config adapter). The model registry maps the checkpoint architecture to the V4.1 package (architecture registry). For NVIDIA, the package imports the V4.1 wrapper from its nvidia branch (platform entry point). vLLM’s model test registry also associates this architecture with deepseek-ai/DeepSeek-V4.1-Flash; that registration is not evidence that this inspection ran the model.

The NVIDIA DeepseekV41ForCausalLM is a multimodal wrapper. Text-only requests use the language model’s token embeddings. For images, the vision transformer (ViT) and aligner produce embeddings that replace the image spans (image processing). The wrapper preserves raw token IDs because V4.1’s MoE router uses image-token identity.

2. The GPU runner builds the scheduled batch and model state

GPUModelRunner.execute_model receives SchedulerOutput, updates request state, selects the scheduled token rows, and prepares block tables and slot mappings (worker entry). The runner resolves model-specific state before falling back to the generic state (state resolver). V4.1’s custom state prepares attention metadata, gathers Engram lookback token IDs when configured, and carries optional replay boundaries for SWA (V4.1 attention-state preparation).

The runner assembles input_ids, positions, optional inputs_embeds, and model-state inputs; it invokes the model through the eager or graph path (model invocation).

The handoff is concrete: scheduled positions and model-specific inputs join the token IDs before the runner calls the model. This excerpt is from GPUModelRunner.execute_model, lines 1949–1957.

        model_inputs = {
            "input_ids": input_ids,
            "positions": input_batch.positions,
            "inputs_embeds": inputs_embeds,
            "intermediate_tensors": None,
            # NOTE: Values returned by `prepare_inputs` will override the default
            # values above.
            **self.model_state.prepare_inputs(input_batch, self.req_states),
        }

This map begins at that GPU-worker boundary; it does not trace HTTP rendering, tokenization, or detokenized response emission.

3. The text model runs its decoder stack

The multimodal wrapper forwards to DeepseekV41LLMForCausalLM, whose model_cls is DeepseekV4Model. The model creates config.num_hidden_layers instances of DeepseekV4DecoderLayer (layer-stack construction). Each layer carries the manifold-constrained hyper-connection (mHC) residual state through attention and then the routed/shared MoE FFN (decoder-layer forward).

4. Each attention layer projects, writes state, selects, and reads

compress_ratios accepts 0 (SWA only), 1 (one compressed entry per token), or 2 (pool token pairs). kv_source_layer_ids and index_source_layer_ids are independent ownership sets; consumers resolve the most recent source below their layer (V4.1 layer topology). The code implements these roles rather than switching on a literal Full/Reindex/Reuse mode enum. The exact layer pattern depends on the checkpoint config, which was not loaded here.

The source-layer choice is made when each attention layer is constructed. The two max calls bind a consumer to its latest eligible KV and index sources (DeepseekV4Attention, lines 332–348):

        is_backbone = layer_id < config.num_hidden_layers
        self.is_kv_source = is_backbone and layer_id in self.kv_source_layers
        self.is_index_source = is_backbone and layer_id in self.index_source_layers
        if self.compress_ratio > 0:
            if not self.kv_source_layers or not self.index_source_layers:
                raise ValueError(
                    "DeepSeek V4.1 requires kv_source_layer_ids / "
                    "index_source_layer_ids in the config for compressed "
                    f"layers (layer {layer_id} has "
                    f"compress_ratio={self.compress_ratio})."
                )
            self.kv_source_layer_id = max(
                s for s in self.kv_source_layers if s <= layer_id
            )
            self.index_source_layer_id = max(
                s for s in self.index_source_layers if s <= layer_id
            )

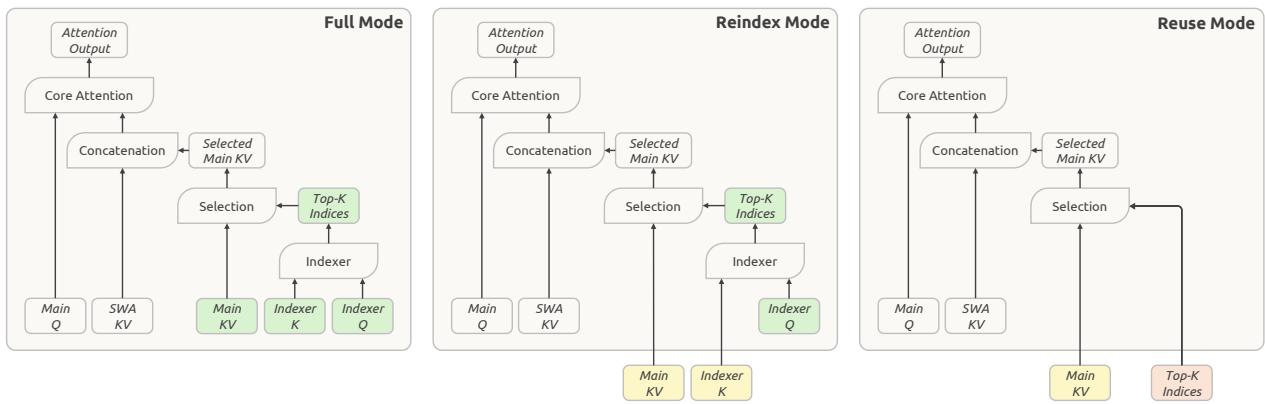

Source: Figure 4 of the DeepSeek-V4.1-Flash technical report, also explained in the report synthesis. Read it as the model’s conceptual ownership map: the vLLM code below represents the roles with kv_source_layer_ids and index_source_layer_ids, and the checkpoint’s actual layer assignments were not inspected.

In the figure, follow the green state first: a Full layer publishes main KV and indexer K and selects top-k positions. Reindex keeps the shared cache but selects new positions; Reuse reads both the cache and the latest selection. Each mode still forms its own query and local SWA KV. The code path below shows where those writes and reads occur on the GPU.

The heavy Q/KV projection runs on the default stream while compressor score and indexer-weight projections may run on auxiliary streams (parallel input projections). The attention preparation overlaps query/SWA preparation with compression, then compressed-cache insertion with indexer preparation; only the sparse indexer and MLA section is in the eager graph break (attention overlap). This overlap is not cosmetic: compression and candidate selection add work to every layer, so they must hide under the Q/KV projection and cache writes, or sparse attention loses its latency advantage over dense MLA.

The second overlap is the write-before-read boundary: indexer preparation runs alongside compressed-cache insertion, and sparse attention starts after both finish.

For a KV-source layer, DeepseekCompressor.forward emits a normalized bfloat16 (BF16) latent; ratio-2 compression also keeps 32-bit floating-point (FP32) open-group state (compressor forward). The fused Triton path saves partial state, pools, and normalizes through fused_save_compress_norm; the latent is then RoPE’d, quantized, and published to the compressed cache (compressed KV insert).

On index-source layers, the source latent produces index K through projection, RMSNorm, RoPE, and FP8/MXFP4 paged store (indexer K store). The V4.1 indexer builds Q and scores candidates into a shared top-k buffer; short contexts can select all candidates without running the scoring kernel (indexer forward/top-k).

Selection itself can be two-level. The lightning indexer at candidate_source_layer_id additionally publishes the top candidate_topk_blocks blocks of candidate_block_size compressed positions; later indexers that opt in score only inside those candidate blocks before their own top-k, while the candidate source and earlier indexers stay dense (two-level filtering contract). The opt-in (attention_config.indexer_sparse_logits) requires the MXFP4 index cache (sparse-logits gate).

Here is the decisive order in _sparse_indexer_and_attn (excerpt: lines 997–1009): an index-source layer invokes its indexer operation, then every layer invokes its selected attention backend. The indexer operation uses the shared top-k buffer configured at construction (buffer handoff).

        if self.indexer is not None and index_q is not None:
            assert index_weights is not None
            q_quant = (index_q, index_q_scale) if index_q_scale is not None else index_q
            self.indexer.indexer_op(
                hidden_states,
                q_quant,
                None,
                index_weights,
            )

        # MLA attention writes into the pre-allocated `out` buffer
        # ([num_tokens, padded_heads, head_dim]).
        self.forward_mqa(q, kv, positions, out)

Cache allocation preserves separate ownership: only KV-source layers return a compressed MLAAttentionSpec, while each layer has an SWA cache (main-KV cache spec, SWA cache spec). The code documents 528-byte SWA records on SM100, 584-byte packed records otherwise, and 288-byte NVFP4 compressed records; these are record widths, not a total per-token cache budget (record sizing).

5. The selected CUDA backend consumes global top-k plus SWA

The selector considers explicit backend configuration, device capability, and Mega-attention eligibility (attention backend selection).

Branch in this pin	Implementation path	Key constraint
SM120 auto path	FlashInfer SM120	Requires a FlashInfer build with the V4 sparse-MLA specialization; initialization raises if absent.
Eligible SM100	FlashMLA Mega	Requires the SM100 extension ops and a compatible local-head / tensor-parallel (TP) topology.
Fallback or explicit selection	FlashMLA prefill and FlashMLA decode	Prefill gathers/dequantizes and merges top-k with SWA; decode maps selected entries to paged-cache offsets.

For the decode branch followed above, FlashMLA maps the shared local top-k positions through the request’s block table to cache offsets (global top-k remap). Because the indices are in compressed-state units, the compressed cache’s block table is walked at block_size // compress_ratio entries per block, so a selected state maps directly to its paged slot without a per-token expansion. The local SWA indices come from separate metadata. The FlashMLA decode call, lines 230–246 passes both cache regions and both index sets to one attention kernel. Its out argument is the attention output buffer, which the model later projects and feeds through the rest of the decoder layer.

        out, _ = flash_mla_with_kvcache(
            q=q,
            k_cache=swa_cache,
            block_table=None,
            head_dim_v=512,
            tile_scheduler_metadata=tile_metadata,
            cache_seqlens=None,
            is_fp8_kvcache=True,
            indices=swa_indices,
            topk_length=swa_lens,
            softmax_scale=self.scale,
            attn_sink=self.attn_sink,
            extra_k_cache=kv_cache if not swa_only else None,
            extra_indices_in_kvcache=topk_indices,
            extra_topk_length=topk_lens,
            out=output.unsqueeze(1),
        )

The packed CUDA Q/KV insertion path is a compiled operator that combines query preparation with local KV RoPE/quantization/store (Python call site, CUDA implementation). That operator requires SM80+; the Mega-attention path handles query RoPE and output quantization inside its own kernels.

6. Hidden states return through logits, sampling, and worker postprocess

After the final layer, the model collapses the mHC streams and normalizes the hidden states (mHC collapse). The language model’s logits processor applies the parallel LM head (compute_logits), and the runner samples token IDs (runner logits/sampling). In this non-speculative branch, the runner selects the hidden row at input_batch.logits_indices, computes logits, then calls the sampler (selected logits row, sampler call). The last pipeline rank wraps the sampler result in AsyncOutput, lines 2174–2182:

        async_output = AsyncOutput(
            model_runner_output=model_runner_output,
            sampler_output=sampler_output,
            num_sampled_tokens=num_sampled,
            main_stream=self.main_stream,
            copy_stream=self.output_copy_stream,
            check_ep_fault=self.check_ep_fault,
            pending_aux_output=pending_aux_output,
        )

It then updates request state and KV-connector output before returning AsyncOutput (sampled-token postprocess, KV-connector post-forward, worker return). The detokenizer and API response are downstream of this page’s scope.

Prefix Reuse and Bounded SWA Replay

Prefix caching lets a new request skip recomputing a shared prefix, but SWA KV cannot participate: a sliding-window cache retains only the last window tokens, and the window a continuation needs — the window tokens just before its first new token — is exactly what a previous request’s cache no longer holds. With bounded replay enabled, SlidingWindowMLASpec therefore reports itself as non-prefix-cacheable and advertises the window as the replay length every prefix hit must recompute (prefix_cacheable, prefix_replay_tokens). V4.1 disables the option without model runner V2 or under prefill context parallelism (replay configuration gates).

The mechanism is bounded because the extra compute is capped at window tokens per hit instead of the whole prefix. When the scheduler grants a hit of H tokens, it records replay_start = H − min(window, H) on the request and rewinds the computed count so the hit’s last window tokens are scheduled again (_mark_prefix_replay); the value travels to the worker in NewRequestData.replay_start (scheduler output field). A KV-connector load that already carries the window — a P/D transfer of the request’s own blocks — replays nothing (load-restores-window check).

On the worker, DeepseekV41ModelState.prepare_attn gathers the batch’s replay starts — prefilling requests only; decode rows rebuilt their window while generating, and dummy batches (captures, profiling) carry none. The replayed tokens are recomputed only to rebuild window KV, so the state pads their slot mappings with PAD_SLOT_ID in the prefix-cacheable groups: the recomputation must not overwrite the main KV that other requests may be sharing. The starts reach the SWA metadata builder through ReplayAttnMetadata, whose kernels treat context below replay_start as having no window KV at all (replay lower bound in the SWA kernel).

When the model carries decoder replay layers, prepare_attn additionally calls _prepare_replay_batch: each prefill’s last window rows are trimmed into a separate sub-batch with its own attention metadata and forward context, like a microbatch (replay batch preparation). The model starts this decoder-side replay after the last KV-source layer; under data parallelism every rank replays if any does, keeping collectives in lockstep. This is a local-state recovery path, not the CED text-encoder path.

Implementation Boundary: Report Versus vLLM

The V4.1 report synthesis describes a causal encoder-decoder (CED) path and a causal-text encoder. In this pinned vLLM path, the visible text model constructs one config.num_hidden_layers stack of V4-named decoder layers; the explicit encoder in the multimodal wrapper is the image ViT. I found no separate CED text-encoder stage in the scoped V4.1 package. This is a scoped static negative finding, not proof that CED is unsupported: it may be implicit in checkpoint/config behavior or implemented outside this path.

The code reads compress_ratios, kv_source_layer_ids, and index_source_layer_ids from the checkpoint config. Those actual values were not fetched, so this page explains the ownership contract but does not label individual checkpoint layers as Full, Reindex, or Reuse.

Verification Limits

• The code links resolve to the registered commit 02aa10539f15c8c73aa7fd4a5ee0f691cbf88dcb; they do not claim the current upstream main implementation.
• The scoped refresh found upstream implementation changes but deferred a new immutable revision until 2026-10-24. The changed candidate code was not read.
• No checkpoint config, NVIDIA GPU, FlashMLA/FlashInfer build, logits, or performance result was executed. Backend and cache statements are static branches in the pinned implementation.
• Speculative draft execution is optional and not traced here; this round trip ends at the GPU worker’s sampled-token output.
