vLLM Continuous Batching: Scheduler, KV Blocks, and Runtime Flow

Repository: vllm-project/vllm Inspected commit: a0c092ee72c0dcefbb3b3e74f97ac62d842e5f4b Checkout state: clean, static reading on 2026-08-02

Related pages: vLLM: PagedAttention Serving Framework, SGLang, KV Cache

TL;DR

What: Continuous batching means vLLM chooses work again at every engine iteration instead of holding a static group until its slowest request finishes.

How: The V1 scheduler spends a per-step token budget on existing running requests first, admits waiting requests into remaining token and sequence capacity, asks the KV-cache manager for physical blocks, and sends a compact SchedulerOutput to a worker-side persistent batch.

The number: Historical sources report gains ranging from about 8× for continuous over naive static batching to as much as 23× when vLLM’s scheduling and memory optimizations are combined; these are workload-specific 2023 benchmarks, not universal multipliers.

The Big Picture

Original AnyScale figure: the left half shows the first iteration; the right half shows S5, S6, and S7 entering as earlier sequences finish. The next model iteration reuses capacity instead of waiting for a fixed request group. Figure preserved locally from the AnyScale continuous-batching article.

Why Static Batches Waste the GPU

Consider four chat requests whose outputs need 2, 6, 3, and 5 decode steps. A static batch launches all four together and keeps the batch boundary until the six-step request finishes. After the short requests emit EOS, their rows become empty work: the server still cannot replace them with newly arrived requests.

Static batching: completed sequences leave unusable gaps inside the fixed request group. Figure preserved locally from the AnyScale continuous-batching article.

Decode iteration	Static batch	Continuous batch
1	A, B, C, D	A, B, C, D
3	B, C, D plus idle A slot	B, C, D plus new E
4	B, D plus idle A/C slots	B, D, E plus new F
6	B plus three idle slots	Any runnable requests that fit

The key waste is not padding inside one tensor alone. It is the lost chance to schedule unrelated work at each autoregressive boundary. Since decode usually produces one token per request per forward pass, those boundaries occur continually.

The Landscape

flowchart LR
    STATIC["Static request batches"] --> DYNAMIC["Request-level dynamic batching"]
    STATIC --> ORCA["Orca iteration-level scheduling"]
    ORCA --> TGI["TGI continuous batching"]
    ORCA --> VLLM["vLLM continuous batching"]
    PAGING["Virtual-memory paging"] --> PAGED["PagedAttention KV blocks"]
    PAGED --> VLLM
    VLLM --> CURRENT["vLLM V1 token-budget scheduler"]
    PREFIX["Prefix caching and KV transfer"] --> CURRENT
    SPEC["Speculative decoding"] --> CURRENT

Landscape synthesis: Orca contributes iteration-level scheduling; virtual-memory paging contributes block-based KV management; current vLLM V1 combines those roots with token budgeting, prefix reuse, KV transfer, and speculative decoding.

Editable diagram: landscape.mmd.

The Core Idea: Rebuild Work Every Iteration

The simple mental model is “replace a sequence when it finishes.” The current implementation is more general: recompute a token-level execution plan on every engine step. Some requests contribute one decode token, some contribute a prompt chunk, and speculative decoding can contribute several tokens. A request does not need to finish before the composition of the next GPU batch changes.

This makes continuous batching an orchestration policy. PagedAttention is the memory mechanism that makes the policy effective under variable sequence lengths. They solve different halves of the same serving problem.

Layer	Question it answers	vLLM mechanism
Scheduling	Which requests advance now?	Per-step running/waiting traversal
Compute budgeting	How much work fits this iteration?	max_num_scheduled_tokens
Concurrency	How many live sequences fit?	max_num_seqs
State memory	Where does each request’s growing history live?	Paged KV blocks and block tables
Execution	How is changing work presented efficiently?	Worker-side persistent batch
Lifecycle	What happens at stop or memory pressure?	Block free or preempt/requeue

State Map

State or field	Plain meaning	Why it matters
waiting	Requests not currently resident as running work	Source of new admissions
running	Admitted requests that may be considered each step	Persists logically, even when a request is skipped for one step
num_computed_tokens	Prefix length already executed or treated as executed	Cursor for the next token range
num_tokens_with_spec	Prompt + accepted output + current draft tokens	Target the computed cursor tries to catch
token_budget	Tokens still available in this scheduler iteration	Shared by prompt chunks and decode tokens
num_scheduled_tokens	Request ID → token count for this step	Defines the actual token-level batch
block table	Logical block position → physical KV block ID	Lets request state grow without contiguous reservation
finished_req_ids	Requests completed since the prior scheduling handoff	Tells workers to discard persistent request rows and side state

The source comment in Scheduler.schedule() is especially important: the scheduler has no fundamental “prefill phase queue” and “decode phase queue.” It models every request as a difference between a computed cursor and a target token count.

Deep Dive 1: One Engine Step Is a Closed Control Loop

What it does: EngineCore.step() performs schedule → execute → update once.

Why it matters: This loop is the iteration boundary at which the active batch may change.

How it works:

1. Scheduler.schedule() constructs a new SchedulerOutput.
2. model_executor.execute_model() runs the planned tokens.
3. Sampling returns zero or more accepted output tokens per scheduled request.
4. Scheduler.update_from_output() advances request state and evaluates stop conditions.
5. Unfinished requests remain eligible for the next step; finished requests leave running and release request-owned cache blocks.

The intuition: Every generated-token boundary is also a rescheduling opportunity.

A concrete example: If B emits EOS in step 1, B is removed after that step’s output is processed. Step 2 can admit D from waiting; A and C do not restart and keep their logical histories.

Remember: The batch changes between model iterations, not inside a running forward pass.

Deep Dive 2: Existing Work Gets the First Claim on the Token Budget

What it does: Scheduler.schedule() initializes token_budget from max_num_scheduled_tokens and visits running before waiting.

Why it matters: Continuous admission cannot come at the cost of forgetting in-flight generations.

How it works: For each running request, the scheduler computes approximately:

new work = target tokens + output placeholders - computed tokens
new work = min(new work, remaining token budget, remaining model length)

Additional gates cover long-prefill thresholds, encoder inputs, speculative lookahead, pipeline cadence, and hybrid-cache alignment. After allocating KV slots, the scheduler subtracts that request’s count from the remaining budget.

The intuition: The token budget is a suitcase packed every step; running decodes go in first, and prompt work fills the remaining space.

A concrete example: With a six-token budget, A may receive a four-token prefill chunk while B and C each receive one decode token. A newly arrived D waits because the step is full, even if max_num_seqs has not been reached.

Remember: max_num_batched_tokens is a token-work ceiling, not simply a request batch-size setting.

Deep Dive 3: Waiting Requests Are Admitted Into Remaining Capacity

What it does: After running work, the scheduler traverses waiting work under FCFS by default or priority scheduling when configured.

Why it matters: This is where a continuous batch gains new rows without waiting for every old row to finish.

How it works: Admission stops or skips when any relevant constraint fails:

• the token budget reaches zero;
• len(running) reaches max_num_seqs;
• a prompt cannot fit and chunking is disabled;
• the model-length, encoder, LoRA, or multimodal constraint is reached;
• the KV-cache manager cannot allocate the required slots;
• structured-output or remote-KV dependencies are not ready.

With chunked prefill enabled, a long prompt can take only the remaining token budget. It becomes a running prefill chunk and continues later rather than delaying all shorter work behind one full prompt.

The intuition: Admission is opportunistic but bounded; “continuous” does not mean “unlimited.”

A concrete example: After B finishes, D can enter step 2 if its first prompt chunk fits both the remaining token budget and available KV blocks. If D’s whole prompt need not fit because chunking is enabled, the scheduler may admit only three prompt tokens now and continue later.

Remember: Free sequence capacity is necessary but not sufficient—token and KV capacity must also agree.

Deep Dive 4: Paged KV Memory Makes Fine-Grained Admission Practical

What it does: KVCacheManager.allocate_slots() maps newly required logical token positions to physical KV blocks.

Why it matters: A scheduler cannot safely add and grow arbitrary requests if each one must reserve a maximum-length contiguous KV buffer.

How it works: The manager accounts for already computed tokens, local or external prefix-cache hits, new tokens, and speculative lookahead. It frees unneeded blocks where supported, checks capacity, then allocates only the new blocks needed for the planned range. The attention backend reads those non-contiguous blocks through per-request block tables.

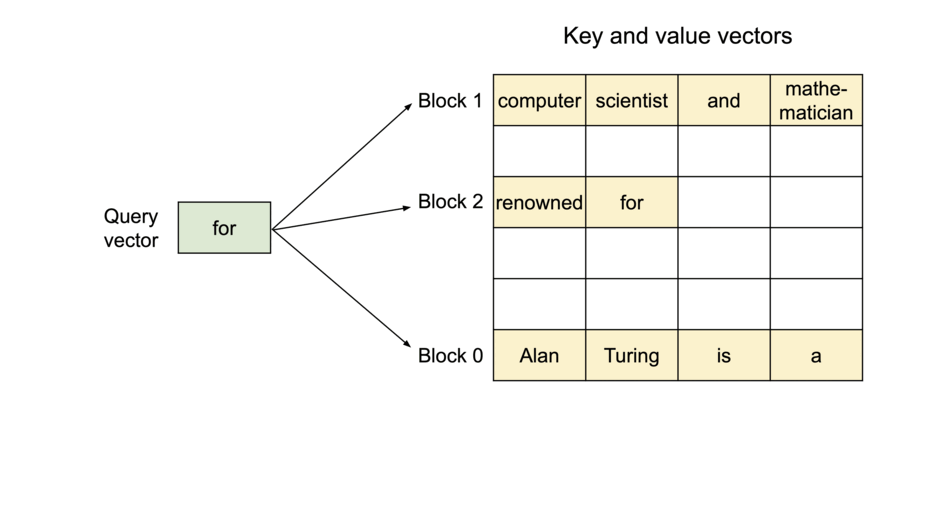

PagedAttention’s block mapping is the memory counterpart to iteration-level scheduling. Animation preserved locally from the official vLLM launch article.

The 2023 vLLM article reports that contiguous reservation and fragmentation wasted 60–80% of KV memory in compared systems, while block paging confined ordinary internal waste to the last block and under 4% in its experiments. Those extra blocks translate into more resident sequences and more scheduling choices.

The intuition: Continuous batching decides when a request runs; PagedAttention makes its growing history cheap enough to keep resident.

A concrete example: D does not reserve its maximum output length at admission. It receives blocks as its prompt and generated output cross block boundaries, leaving unused physical blocks available for A and C.

Remember: The headline throughput comes from the coupling of iteration-level scheduling and memory-efficient residency, not from either label alone.

Deep Dive 5: The GPU Batch Is Persistent but Reconciled

What it does: GPUModelRunner._update_states() updates an existing input batch rather than reconstructing every request’s state from scratch.

Why it matters: Fine-grained scheduling would lose its benefit if every iteration paid large CPU setup and state-copy costs.

How it works: The worker:

1. removes rows named in finished_req_ids;
2. removes temporarily unscheduled or preempted rows from the active batch;
3. updates token cursors and appends block IDs for cached running requests;
4. creates state for newly admitted requests;
5. restores resumed requests; and
6. compacts or reuses batch indices before preparing GPU tensors.

Most consecutive batches overlap heavily, which is the assumption behind the persistent-batch optimization. The code explicitly warns that alternating between disjoint request sets makes this optimization inefficient.

The intuition: Logical membership is dynamic, but unchanged rows are kept warm.

A concrete example: A and C retain cached request state between steps; B’s row disappears; D is inserted with its prompt tokens and block table.

Remember: Continuous batching changes membership incrementally rather than throwing away all worker state each step.

Deep Dive 6: Completion Frees Capacity; Pressure Causes Preemption

What it does: Normal stopping releases a request’s blocks, while failed KV admission can evict a running request and place it back in waiting state.

Why it matters: The scheduler needs both a fast success path and a recovery path when aggregate KV demand exceeds physical capacity.

How it works: On EOS, stop string, or maximum tokens, update_from_output() marks the request finished, removes it from the running set, and calls _free_request(). Its KV blocks return to the allocator unless an asynchronous transfer requires deferred release.

If allocate_slots() returns None for running work, the scheduler preempts the lowest-priority request under priority mode or removes from the end of the running list under FCFS. Resumption may reuse prefix-cached blocks or recompute the missing state. Excessive preemption therefore converts memory pressure into repeated work and worse tail latency.

The intuition: Finished work gives memory back for free; preempted work gives memory back by borrowing from future compute.

A concrete example: If A needs another KV block and none is free, D may be preempted and requeued. A advances, but D later pays resume or recomputation cost—evidence that the server is operating beyond comfortable cache capacity.

Remember: A high preemption count is a capacity symptom, not a batching win.

Putting It Together: Two Iterations With Mixed Work

1. Step 1 starts with six token slots: A receives a four-token prefill chunk, while B and C each receive one decode token.
2. D arrives while the model executes: it remains in waiting because the current iteration is already fixed and its token budget is exhausted.
3. B emits EOS: output processing removes B from running and releases its request-owned KV blocks.
4. Step 2 is rebuilt: A receives two more prompt tokens, C receives one decode token, and D is admitted with a three-token prompt chunk.
5. The worker reconciles membership: A and C retain persistent request state, B disappears, and D enters with its block table.

Both iterations spend six token slots, but they contain different request shapes. SchedulerOutput is therefore best understood as a mapping from request IDs to scheduled token counts plus the KV-block metadata needed to execute those ranges—not as one fixed request batch.

Continuous, Dynamic, Iteration-Level, and Chunked Are Not Synonyms

Term	Decision boundary	What changes
Static batching	After the whole request group finishes	Entire request group
Request-level dynamic batching	Before launching a new static group	Group size based on queue arrivals
Continuous batching	Every generation/model iteration	Active request membership and per-request work
Iteration-level scheduling	Same core mechanism as continuous batching	Emphasizes scheduler timing
Chunked prefill	Within prompt processing across iterations	How a long prompt consumes token budget
PagedAttention	On KV allocation and attention access	Where request state resides

The AnyScale article notes that “dynamic batching” is sometimes used for continuous batching but is ambiguous because request-level dynamic batching can still produce a static generation group. In vLLM code, chunked prefill and PagedAttention are complementary mechanisms, not alternate names for the scheduler.

What the Main Knobs Actually Control

Knob	Direct control	Increasing it can improve	Increasing it can hurt
max_num_batched_tokens	Token work per iteration	Throughput and prompt progress	Step time, TPOT, memory/workspace pressure
max_num_seqs	Concurrent running requests	Decode concurrency	Per-step overhead, KV pressure, preemption
enable_chunked_prefill	Whether prompts can span token-budgeted steps	Decode/prefill coexistence, long-prompt fairness	More scheduling complexity; prompt completion spans steps
long_prefill_token_threshold	Cap for one long-prefill chunk	Limits a prompt’s per-step interference	Too low can extend TTFT for long prompts
gpu_memory_utilization	Fraction available to model execution and KV cache	More resident KV blocks	OOM risk and less safety margin
scheduling policy	FCFS or priority queue ordering	Workload-specific fairness or urgency	Priority policy can starve low-priority work if misused

There is no universal best value. The pinned code chooses hardware- and usage-context-dependent defaults; it even contains a warning that overly large token batches can reduce A100 throughput. Tune against prompt length, output length, arrival process, latency objectives, and actual model/hardware—not a single blog checklist.

What This Buys You

The headline claim

Continuous batching recovers otherwise idle decode opportunities, and paged KV memory raises the concurrency level at which those opportunities remain available.

How we know: historical serving evidence

Source and workload	Reported result	What it isolates
AnyScale, OPT-13B on one A100 40 GB	Up to 8× continuous over naive static batching	Scheduling plus implementation differences
AnyScale, same study with vLLM	Up to 23× over naive baseline	Continuous batching plus vLLM memory optimizations
vLLM launch article, LLaMA-7B/13B ShareGPT	Up to 24× over HF and 3.5× over TGI	Full-system comparison
vLLM launch article, paged KV memory	Under 4% ordinary waste in its experiments	Block allocation efficiency

The mechanism behind the numbers

Static batching loses utilization as output-length variance grows. Continuous batching makes the loss recoverable at the next iteration. vLLM then keeps more sequences eligible by avoiding maximum-length contiguous KV reservations. The gain should therefore grow with variable output lengths, queue depth, and KV memory pressure, then shrink when the workload is already compute-bound or has uniform short outputs.

⚠️ How to read these numbers

The EaseCloud 2026 page offers useful operational framing, but several of its exact benchmark and tuning claims are not accompanied by a reproducible setup in the captured article. This page uses it as secondary operational evidence, not as the authority for implementation behavior. The 2023 comparisons also target older framework versions and hardware; do not transfer their multipliers directly to a current deployment.

Where It Breaks

Failure mode	When it happens	Impact
No queue to fill gaps	Low request arrival rate	Continuous admission has little extra work to schedule
Uniform one-token outputs	Requests finish at nearly the same time	Static batching already has little tail waste
Oversized token budget	Long mixed steps on latency-sensitive traffic	Higher throughput may worsen inter-token latency
Prefill interference	Large prompts consume most step tokens	Decode TPOT and new-request TTFT can become unstable
KV saturation	Too many or too-long resident sequences	Preemption, recomputation, queueing, and tail-latency spikes
Low batch overlap	Consecutive steps alternate between disjoint request sets	Persistent-batch reconciliation loses efficiency
Compute-bound model/workload	KV memory is not the bottleneck	Paging and scheduling overhead provide smaller gains
Misread aggregate tokens/s	Throughput rises because many users share the GPU	Individual request latency may still violate an SLA
Blog defaults copied blindly	Model, GPU, context, and traffic differ	OOM, regressions, or misleading benchmark conclusions

Code Reading Path

1. Start at vllm/v1/engine/core.py::EngineCore.step to see the control loop.
2. Read vllm/v1/core/sched/scheduler.py::Scheduler.schedule, especially the running loop, waiting loop, and SchedulerOutput construction.
3. Read vllm/v1/request.py::Request for the computed-token cursor model.
4. Follow KVCacheManager.allocate_slots in vllm/v1/core/kv_cache_manager.py for memory admission.
5. Inspect GPUModelRunner._update_states in vllm/v1/worker/gpu_model_runner.py for persistent-batch mutation.
6. Return to Scheduler.update_from_output to see stop detection, queue removal, preemption aftermath, and KV release.

The factual code evidence and reproduction commands are preserved in continuous-batching-runtime.md.

One Thing to Remember

vLLM does not keep a batch alive; it keeps requests alive and rebuilds their next token-level execution slice every iteration. Paged KV blocks preserve each request’s history while membership changes, so finished rows can disappear, new prompt chunks can enter, and ongoing decodes can continue without waiting for a slowest-request barrier.

Go Deeper

• Read: vLLM launch article and AnyScale’s continuous-batching explanation.
• Build on: vLLM PagedAttention framework analysis and SGLang’s prefix-aware runtime.
• Operate: EaseCloud’s throughput guide, with the evidence caveats above.
• Inspect: vLLM commit a0c092ee72c0dcefbb3b3e74f97ac62d842e5f4b.
