vLLM Data-Parallel Deployment: Internal and External Load Balancing

A source-backed guide to vLLM data-parallel deployment topologies, internal and external load balancing, MoE synchronization, and launch strategy.

Updated September 16, 2026Confidence: Medium

vLLM Data-Parallel Deployment: Internal and External Load Balancing

Web source: Data Parallel Deployment - vLLM

Repository: vllm-project/vllm

Inspected commit: 8fe9317f2e401aff6e13044098ac7f59e95dce97

Checkout state: clean, commit-pinned static reading on 2026-08-25. The upstream page at the pinned revision is available as the vLLM deployment guide.

Related pages: vLLM Architecture Overview, vLLM Continuous Batching, vLLM Prefill/Decode Disaggregation, and vLLM Block Table Management.

TL;DR

What: Data parallelism replicates model weights across DP ranks so separate request batches can be processed by separate vLLM engine instances.

How: vLLM can place request routing inside one API process, at the node boundary, or in an external router that treats each DP rank as its own endpoint.

The deployment rule: Dense-model replicas are independent servers; MoE DP ranks still have synchronized forward passes, so external HTTP routing does not remove the cross-rank execution contract.

The Big Picture

The official diagrams answer the most important topology question: where does an incoming request meet the DP ranks?

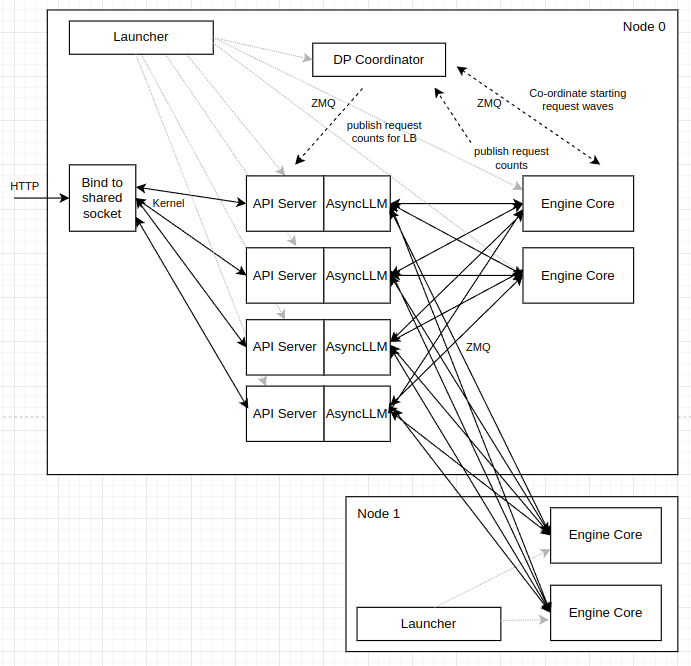

vLLM internal data-parallel load-balancing topology

Source: the captured vLLM deployment page, preserved locally from the pinned documentation source. The single API endpoint owns the routing decision and can reach all DP engines.

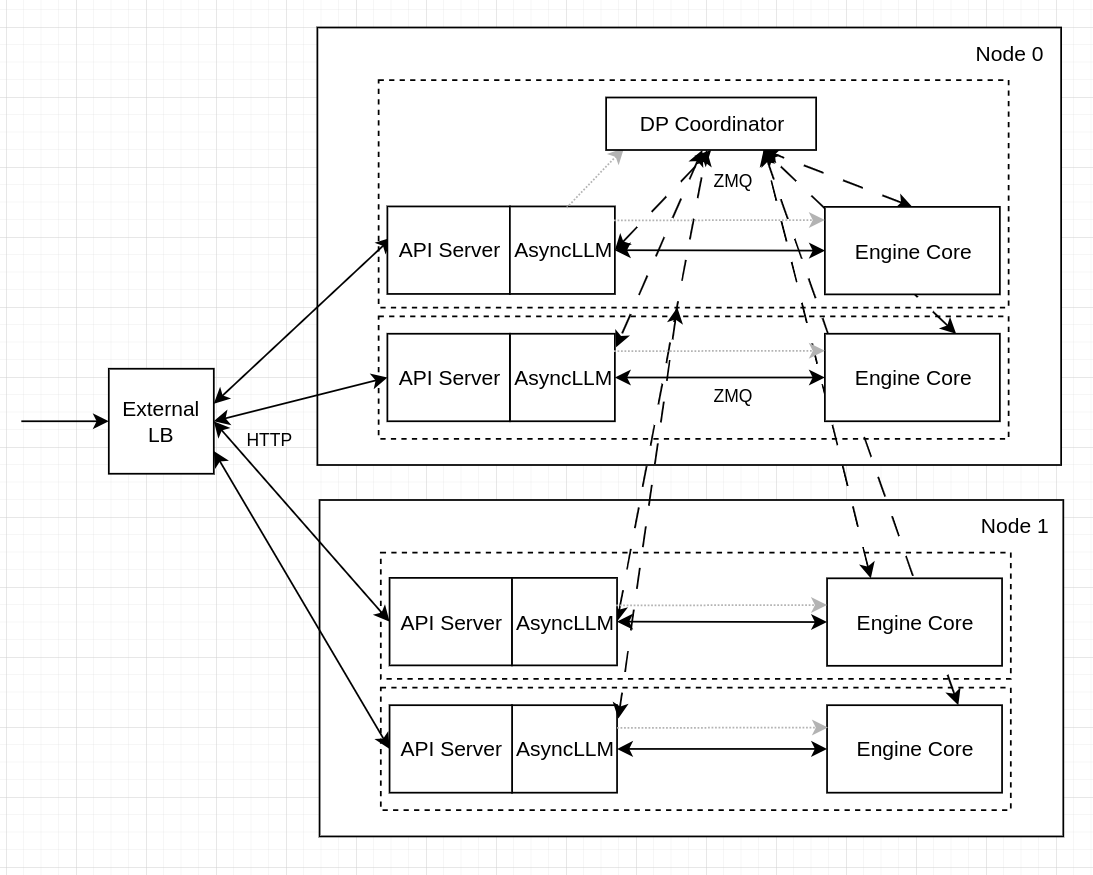

vLLM external data-parallel load-balancing topology

Source: the captured vLLM deployment page, preserved locally from the pinned documentation source. Separate launches expose separate rank endpoints; an external router owns the request distribution.

The diagrams do not show the hybrid mode or the newer multi-port supervisor path. The following synthesized map adds those two intermediate choices.

flowchart LR
    Client["Client traffic"] --> Route{"Where does routing live?"}
    Route -->|"One endpoint; API sees all ranks"| Internal["Internal LB"]
    Route -->|"One endpoint per node"| Hybrid["Hybrid LB"]
    Route -->|"One endpoint per rank"| External["External LB"]
    Route -->|"One launch per node; child ports"| Supervisor["Multi-port external LB"]
    Internal --> IEng["Head API / DP coordinator<br/>all DP core engines"]
    Hybrid --> HIngress["Ingress / upstream LB"] --> HNode["Node API"] --> HLocal["local DP engines"]
    External --> EIngress["Router telemetry"] --> ERank["rank API"] --> ECore["one DP engine"]
    Supervisor --> SIngress["Router"] --> SHealth["supervisor health"] --> SChildren["per-rank API children"]
    IEng --> MoE["MoE DP group<br/>aligned forward + dummy passes"]
    HLocal --> MoE
    ECore --> MoE
    SChildren --> MoE

Synthesized topology map. It answers “who chooses a rank?” rather than redrawing the upstream figures. Internal mode chooses across the full process; hybrid mode chooses across local ranks after an upstream node choice; external mode chooses the rank endpoint outside vLLM. Editable source: dp-deployment-strategies.mmd.

Why This Exists

Consider four DP ranks serving a mixture of long prompts and short decode requests. Every rank has its own KV cache. If the API sends new prompts to a rank that already has a long waiting queue, that rank may drain slowly even though another rank is idle. If the prompt shares a prefix with work already on one rank, sending it elsewhere also loses the local prefix-cache opportunity.

Internal LB solves this with one vLLM API process that observes rank state. Hybrid LB first sends traffic to a node and then balances only among the ranks on that node. External LB moves the first decision to an ingress or router, which must obtain suitable live telemetry and maintain any locality policy.

For an MoE model, this routing problem has a second layer. A rank with no user request cannot simply stop if its experts participate in a distributed forward pass. It must execute synchronized empty work while another rank is active. The HTTP load-balancing boundary and the MoE execution boundary are therefore different things.

The Core Idea

The ParallelConfig expresses a global DP size, a local DP size, a rank, and the address/port used for DP coordination. With DP size D and attention tensor-parallel size T, a single-node deployment normally needs D x T accelerator devices. --max-num-seqs applies per DP rank, so increasing D changes both capacity and the number of independent scheduler budgets.

The three important routing shapes are:

Mode Who chooses the DP rank? What each API process manages Best fit Main cost
Internal vLLM API process All DP engines in the deployment Moderate scale and one simple endpoint Head-node API/coordinator can become a bottleneck
Hybrid Upstream LB chooses a node; vLLM chooses a local rank Only the node’s local DP engines Multi-node deployments that want local request traffic Requires per-node endpoints and global MoE coordination
External An ingress/router chooses a rank endpoint One DP engine per vLLM server Large Kubernetes-style deployments and custom telemetry Router must own health, rank selection, and locality
Multi-port external An upstream LB chooses a node; supervisor owns child ports One API child per local rank One launch per node with aggregated health More processes and ports to operate

data_parallel_external_lb and data_parallel_hybrid_lb make the client manage only local engines; the local_engines_only property is the compact implementation of that boundary. Pure internal LB is the exception: the rank-0 API process can manage local and remote engines.

Deployment Strategy

Use this sequence when choosing a topology:

  1. Classify the model. For a dense model, launch independent vLLM instances and place a normal HTTP load balancer in front of them. Do not use the MoE-oriented external DP CLI options. For an MoE model, decide whether its attention is replicated with DP and its experts use tensor parallelism (the default) or expert parallelism with --enable-expert-parallel.
  2. Choose the replica shape. Set --data-parallel-size D for the number of model replicas and --tensor-parallel-size T for the attention worker group inside each replica. Keep the model, tokenizer, KV-cache dtype, and parallel configuration identical across ranks.
  3. Choose the routing boundary. Start with internal LB when one endpoint and vLLM-managed queue-aware routing are enough. Choose hybrid LB when node-local routing reduces cross-node request traffic. Choose external LB when the platform already has an ingress, autoscaler, health system, and telemetry plane that should own rank selection.
  4. Choose the process launcher. Use the multiprocessing backend for explicit multi-node MP launches. Use Ray internal DP when cluster resource placement and one-command startup are more valuable than explicit per-node commands. Use the multi-port supervisor when one process per node should expose one health endpoint while its children expose one port per local rank.
  5. Validate the execution contract. For MoE, test that every rank joins the same DP/expert collectives, including idle periods. For any mode, measure queue depth, running requests, KV usage, prefix-cache hit behavior, TTFT, inter-token latency, and router errors together.

The upstream data-parallel CLI definitions expose the global size, local size, rank, start rank, coordinator address, RPC port, backend, and three LB flags. The engine-argument validation rejects incompatible mode combinations, requires a rank for pure external mode, rejects external DP mode for non-MoE models, and infers a hybrid mode when a non-headless launch supplies a start rank.

Internal Load Balancing

What starts

A single-node internal deployment is the shortest path to one endpoint:

vllm serve $MODEL \
  --data-parallel-size 4 \
  --tensor-parallel-size 2

This creates four DP engines, each with two tensor-parallel workers, for eight GPUs total. vLLM’s serve command defaults the API-server count to the full DP size in internal mode. The serve mode selection is also where the command distinguishes internal, hybrid, external, and multi-port external launches.

For a large DP size, add --api-server-count N. These API processes share the same public port and split frontend work, but this scale-out remains inside the head node; it does not distribute the API layer across the cluster.

Multi-node internal mode

For explicit multiprocessing across two nodes, keep one global DP size and assign a contiguous local rank range to each launch. The first node owns the API server and ranks 0-1; the second node is headless and starts ranks 2-3:

# Node 0, API server and DP ranks 0-1
vllm serve $MODEL \
  --data-parallel-size 4 \
  --data-parallel-size-local 2 \
  --data-parallel-address 10.99.48.128 \
  --data-parallel-rpc-port 13345

# Node 1, headless DP ranks 2-3
vllm serve $MODEL \
  --headless \
  --data-parallel-size 4 \
  --data-parallel-size-local 2 \
  --data-parallel-start-rank 2 \
  --data-parallel-address 10.99.48.128 \
  --data-parallel-rpc-port 13345

The --headless launch starts engines but no API server. An alternative is to put only the API server on the first node with --data-parallel-size-local 0 and run all four engines headlessly on the second node. Ray can express the same internal topology with one launch:

vllm serve $MODEL \
  --data-parallel-size 4 \
  --data-parallel-size-local 2 \
  --data-parallel-backend=ray

With Ray, the cluster supplies remote resources and the launch does not need an explicit DP address or RPC port. When one DP group spans multiple nodes, set VLLM_RAY_DP_PACK_STRATEGY=span; Ray then determines the local placement rather than using --data-parallel-size-local as a fixed count.

How a request is selected

The async engine client factory selects DPLBAsyncMPClient for internal and hybrid LB, and DPAsyncMPClient for external LB. In internal mode, the client receives coordinator snapshots for the engines it manages. The snapshot has [waiting, running, kv_cache_usage] per engine.

DPLBAsyncMPClient.get_core_engine_for_request chooses the engine with the lowest estimated score. In the pinned revision the score is the greater of the coordinator’s waiting + running snapshot and the current client’s own in-flight count scaled by the number of API clients. A waiting queue receives an additional penalty as KV usage rises above 50 percent. Ties rotate across the engine list, and the client increments an optimistic waiting count between 100-ms coordinator updates.

Evidence: The captured web page describes internal LB as based on running and waiting queues and leaves KV-cache-aware routing as future work. The pinned 8fe931... implementation already includes kv_cache_usage in the score. Treat the code behavior as revision-specific and verify the exact scoring policy when upgrading vLLM.

How the coordinator feeds it

DPCoordinator is a separate process. Its process_input_socket receives scheduler statistics from engine cores, stores waiting/running/KV-usage state, and publishes the most recent snapshot to frontend clients. It also carries the current request wave and running state used by MoE synchronization.

The client does not route on raw GPU utilization. It routes on the state vLLM makes available at the scheduler boundary, so queue and KV behavior should be part of the deployment’s capacity model.

Hybrid Load Balancing

Hybrid mode places one API server or API-server group on every node. The upstream load balancer chooses a node; the node-local vLLM client then chooses among its colocated DP engines. It is enabled explicitly with --data-parallel-hybrid-lb, or implicitly for a non-headless launch that uses --data-parallel-start-rank.

For DP=4 with two ranks on each node, use the same global DP size on both nodes and give each node its local count and rank offset:

# Node 0: DP ranks 0 and 1
vllm serve $MODEL \
  --data-parallel-size 4 \
  --data-parallel-size-local 2 \
  --data-parallel-start-rank 0 \
  --data-parallel-hybrid-lb \
  --data-parallel-address 10.99.48.128 \
  --data-parallel-rpc-port 13345

# Node 1: DP ranks 2 and 3
vllm serve $MODEL \
  --data-parallel-size 4 \
  --data-parallel-size-local 2 \
  --data-parallel-start-rank 2 \
  --data-parallel-hybrid-lb \
  --data-parallel-address 10.99.48.128 \
  --data-parallel-rpc-port 13345

Every node exposes an API endpoint, so hybrid mode is not compatible with --headless. Set --api-server-count per node according to the number of local ranks. Because each client manages only local engines, the upstream LB is responsible for node-level distribution while vLLM remains responsible for rank-level distribution.

The hybrid process still participates in the global MoE coordinator and DP collectives. Hybrid changes request ingress locality; it does not turn an MoE DP group into independent processes.

External Load Balancing

Dense models: independent replicas

For a dense model, launch independent vLLM servers without DP-specific flags:

CUDA_VISIBLE_DEVICES=0 vllm serve $MODEL --port 8000
CUDA_VISIBLE_DEVICES=1 vllm serve $MODEL --port 8001

A normal external load balancer can distribute requests between these servers. There is no shared MoE DP coordinator, so each replica is an independent serving unit. This is also the simplest failure domain.

MoE models: one endpoint per DP rank

For an MoE DP deployment, each launch identifies its rank. Co-located ranks need distinct HTTP ports:

# Rank 0
CUDA_VISIBLE_DEVICES=0 vllm serve $MODEL \
  --data-parallel-size 2 \
  --data-parallel-rank 0 \
  --port 8000

# Rank 1
CUDA_VISIBLE_DEVICES=1 vllm serve $MODEL \
  --data-parallel-size 2 \
  --data-parallel-rank 1 \
  --port 8001

For multi-node ranks, set the same rank-0 coordinator address and RPC port on every launch:

# Rank 0, coordinator host 10.99.48.128
vllm serve $MODEL \
  --data-parallel-size 2 \
  --data-parallel-rank 0 \
  --data-parallel-address 10.99.48.128 \
  --data-parallel-rpc-port 13345

# Rank 1
vllm serve $MODEL \
  --data-parallel-size 2 \
  --data-parallel-rank 1 \
  --data-parallel-address 10.99.48.128 \
  --data-parallel-rpc-port 13345

The external router selects one HTTP endpoint per request. Inside each server, DPAsyncMPClient manages one rank-local engine, so it does not perform full-DP request balancing. The same client shape is used when a request is explicitly assigned a data_parallel_rank in the input processor.

An external router should use live health and workload telemetry rather than blind round robin when prefix locality, queue depth, or KV capacity matters. That policy is outside the pinned vLLM client. The router must also treat a failed MoE rank as a group-level event, because the surviving ranks may be unable to complete the next synchronized forward pass alone.

Multi-port external supervisor

The pinned revision also contains --data-parallel-multi-port-external-lb. It is useful when an orchestrator wants one launch per node but still wants one API port per local rank. The supervisor derives each child rank and port, starts the children, probes their /health endpoints, and exposes an aggregated health endpoint only after all children are ready. The DPSupervisor implementation makes this a process supervisor, not another request-balancing algorithm.

A node-local launch has the shape:

vllm serve $MODEL \
  --data-parallel-size 4 \
  --data-parallel-size-local 2 \
  --data-parallel-start-rank 0 \
  --data-parallel-multi-port-external-lb \
  --port 8000 \
  --data-parallel-supervisor-port 9256

The two child rank servers use ports 8000 and 8001; the supervisor’s health port is 9256. A second node uses --data-parallel-start-rank 2 and a non- overlapping HTTP/supervisor port range. The child creation and rank/port mapping are implemented in DPSupervisor._start_children, while readiness and failure shutdown are handled by DPSupervisor._probe_all_children.

MoE Synchronization Is Separate from HTTP Routing

The upstream page states that DP ranks for MoE models are not completely independent. By default, expert layers form a tensor-parallel group of size DP x TP; --enable-expert-parallel changes the expert sharding strategy. Forward passes remain aligned even when only one rank has user requests.

The launch path creates the launch_core_engines process topology. In online DP mode, rank 0 starts the coordinator when the configuration needs one. Internal mode lets rank 0 handshake with all core engines; hybrid and external modes keep the frontend’s engine ownership local while preserving the shared DP setup.

DPEngineCoreProc uses a lockstep loop for MoE DP. If its local scheduler has no ready request while another rank is active, it executes a dummy batch. Every 32 steps it calls _has_global_unfinished_reqs, which uses a DP all-reduce to decide whether the group can pause. The coordinator broadcasts request-wave state so a new request wakes the other ranks and stale wave notifications do not reawaken a group that has already reached pause consensus.

Important: External LB controls which server receives the HTTP request; it does not control whether all MoE DP ranks participate in the next forward pass.

Putting It Together: One Request Round Trip

Follow request R in the four-DP internal case. The same core stages apply to hybrid and external modes; only the set of engine identities visible to the client changes.

Step Actor and code evidence Input state Action Output state
1 API input processor: process_inputs and EngineCoreRequest construction HTTP or programmatic request, optional rank hint Validates the rank range and builds EngineCoreRequest Request carries data_parallel_rank or no hint
2 Client factory: make_async_mp_client DP configuration Selects the full-DP LB client or one-rank client Routing policy is fixed for this API process
3 Request selection: get_core_engine_for_request R plus engine state snapshots Chooses the lowest internal score, honors a rank hint, or uses the only external engine R is sent through ZMQ to one core engine
4 Coordinator: process_input_socket Per-engine scheduler counts and wave state Publishes fresh counts; for MoE, wakes or advances the synchronized wave Clients update their routing snapshot; DP ranks agree on running state
5 MoE engine loop: DPEngineCoreProc.run_busy_loop R on one rank, possibly no local request on peers Runs the model on R and dummy work on idle peers; all-reduces unfinished state Model outputs and scheduler stats return from the engine group
6 Client output queue: AsyncMPClient.get_output_async EngineCore output frames Decodes output frames and exposes them to the async engine EngineCoreOutputs reaches AsyncLLM
7 Response processing: AsyncLLM output handler Engine outputs and finished request IDs Processes output chunks, updates scheduler stats, and closes the request queue Client receives streamed result; internal routing state releases R

For an external per-rank launch, step 3 is simpler: the external router has already chosen the rank endpoint and that API process’s DPAsyncMPClient.get_core_engine_for_request returns its sole local engine. The MoE coordinator and steps 4-7 still matter.

Sizing and Operational Signals

Use these as separate dimensions rather than reducing the deployment to GPU count:

Dimension What to watch Why it changes the strategy
Prompt admission Prompt tokens per second and TTFT Prefill-heavy traffic can make one rank’s waiting queue dominate
Decode service Active sequences, output length, and inter-token latency Long generations keep ranks occupied even with few new requests
KV capacity KV usage, cache evictions, and prefix-cache hits Each DP rank owns an independent cache; routing affects locality
Frontend API queueing, CPU usage, and request fan-out Internal LB can make the head API a bottleneck
Network Cross-node request/RPC traffic and error rate Hybrid reduces request routing distance but not MoE collectives
Synchronization Dummy steps, wave transitions, and stalled collectives MoE DP cannot be evaluated as independent HTTP servers

The internal client currently exposes queue and KV signals to its own routing logic. An external router must define its telemetry contract separately and should test stale metrics, rank failure, retry duplication, and prefix locality.

Where It Breaks

Failure mode When it happens Impact
Non-MoE external DP flags A dense model is launched with external DP CLI options vLLM rejects the configuration; use independent servers instead
Missing external rank External mode has no --data-parallel-rank and no inferable multi-node rank Startup cannot bind this launch to one DP engine
Invalid local topology Local size exceeds global size, or rank plus local size exceeds the DP range Engine startup or argument validation fails
Hybrid/headless conflict Hybrid mode is combined with --headless A mode that needs a per-node API endpoint has no API process
Conflicting LB modes More than one of internal, hybrid, external, or multi-port flags is active CLI validation rejects ambiguous ownership
MoE rank drift One rank uses a different model, expert/TP setting, or DP group address Collective mismatch, startup failure, or a hung forward pass
Coordinator failure The rank-0 coordinator or its ZMQ paths die Stats and wave coordination stop; the deployment may become unavailable
Stale external telemetry Router sends work using old queue/KV or health data Load imbalance, prefix-cache loss, retries, or avoidable tail latency
Port collision Per-rank HTTP ports, supervisor ports, or RPC ports overlap Child launch or cross-node handshakes fail
Overloaded head API Large internal DP count or too many concurrent clients Routing and serialization add latency even when engines have capacity

Verification Boundary and Limits

The page combines the captured official documentation with static inspection of the clean vLLM checkout at commit 8fe9317f2e401aff6e13044098ac7f59e95dce97. The repository contains focused unit tests for internal routing and the multi-port supervisor, including DPLBAsyncMPClient routing tests and DPSupervisor tests. They were not executed here. No multi-GPU, Ray, Kubernetes, or production network run was performed, so throughput, interconnect behavior, failover time, and real prefix-cache gains remain unverified. vLLM changes quickly; re-check the pinned flags and scoring logic when upgrading.

One Thing to Remember

Load balancing decides where a request enters; data-parallel execution decides who must participate. Internal LB centralizes rank selection in one vLLM frontend, hybrid LB splits the decision between an upstream node router and a local vLLM frontend, and external LB gives each rank its own endpoint. For MoE, all of those choices still sit above a synchronized DP execution group.
