vLLM Prefill/Decode Disaggregated Deployment Path

Inspected commit: 2d24355eb87b716fc1169e66731dc0386ed1a3a2

Verification boundary: clean, commit-pinned static reading. The proxy, GPUs, NIXL transport, failure recovery, and multi-node performance were not executed.

The Short Version

Prefill/decode (PD) disaggregation does not split one vLLM engine in half. It runs two independently schedulable vLLM pools and adds a router plus a KV data plane between them:

The router sends a one-token generation request to a prefill instance.
Prefill computes the prompt and retains its paged KV cache.
The router sends a coordinated request to a decode instance.
Decode imports the prompt KV into its own block allocation, then generates the client-visible token stream.

The main reason to deploy this shape is isolation: prefill resources can be tuned for time to first token (TTFT), while decode resources can be tuned for inter-token latency (ITL). vLLM’s own feature guide explicitly frames it this way and warns that disaggregation is not inherently a throughput optimization in Why disaggregated prefilling.

Intuition: PD disaggregation trades an in-process scheduling interference problem for a distributed coordination problem. It can make decode latency more predictable, but now correctness depends on routing identity, compatible KV layouts, successful transfer, and timely block release.

What Changes Compared with One vLLM Pool

Concern	Co-located prefill and decode	PD-disaggregated deployment
Admission	One scheduler mixes prompt and decode work	Router selects a P instance and a D instance
Prompt state	KV remains in the same engine	KV is copied into blocks owned by D
Scaling	One replica shape serves both phases	P and D counts and parallelism can scale independently
Latency coupling	Prompt work can disturb ongoing decode	Transfer and queueing replace most compute interference
Failure scope	One engine/request path	Router, P, D, side channel, and KV data plane can fail independently
Capacity accounting	One KV block pool	P must lease source blocks while D allocates destination blocks
Correctness contract	One model/configuration	P and D must agree on model and transferable KV layout

PD is therefore a good fit when tail ITL has a strict service-level objective, prefill and decode need different accelerator or parallelism shapes, or the two phases need independent autoscaling. For a simpler deployment, vLLM’s ordinary mixed scheduler plus chunked prefill may be the better baseline because it avoids the network handoff.

Deployment Topology

The minimum production shape has three logical planes:

Request plane: an OpenAI-compatible router chooses P and D endpoints and preserves request identity and transfer metadata.
Engine control plane: scheduler-side connectors decide which tokens and block mappings can come from another engine.
KV data plane: worker-side connectors move device or host buffers through NIXL/UCX, GDS, LIBFABRIC, or another connector backend.

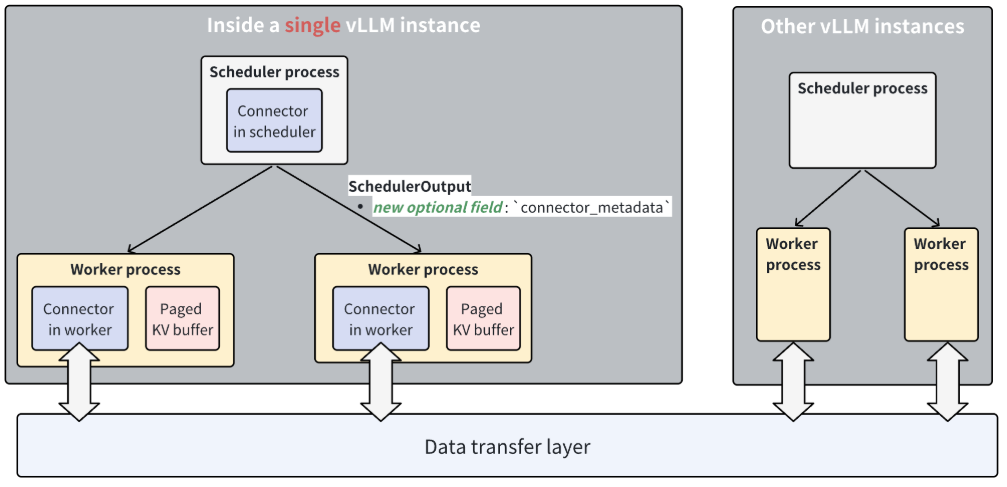

vLLM scheduler and worker connectors coordinate metadata while worker processes move paged KV through the data-transfer layer

vLLM’s original high-level connector design. The scheduler connector emits opaque metadata; worker connectors touch the paged KV buffers and data-transfer layer. Source: the pinned disaggregated-prefill design documentation.

This separation matters operationally. HTTP success does not prove KV transfer success, and a healthy worker data plane does not prove the router is pairing the right request metadata.

A Minimal NIXL Deployment

A same-host smoke test needs one GPU for P, one for D, distinct HTTP ports, and distinct NIXL side-channel ports. Use explicit roles; kv_both is deprecated for NixlConnector.

# Prefill / KV producer
CUDA_VISIBLE_DEVICES=0 \
VLLM_NIXL_SIDE_CHANNEL_PORT=5600 \
UCX_NET_DEVICES=all \
vllm serve Qwen/Qwen3-0.6B \
  --port 8100 \
  --kv-transfer-config \
  '{"kv_connector":"NixlConnector","kv_role":"kv_producer","kv_load_failure_policy":"fail"}'

# Decode / KV consumer
CUDA_VISIBLE_DEVICES=1 \
VLLM_NIXL_SIDE_CHANNEL_PORT=5601 \
UCX_NET_DEVICES=all \
vllm serve Qwen/Qwen3-0.6B \
  --port 8200 \
  --kv-transfer-config \
  '{"kv_connector":"NixlConnector","kv_role":"kv_consumer","kv_load_failure_policy":"fail"}'

Then place a PD-aware router in front of 8100 and 8200. Across hosts, set VLLM_NIXL_SIDE_CHANNEL_HOST to a reachable data-plane address. Each worker on one host needs a unique side-channel port; data-parallel ranks derive ports from the configured base.

Important: configure UCX/NIXL networking, not just NCCL networking. NCCL_SOCKET_IFNAME and NCCL_IB_HCA do not select the NIXL UCX path.

One Request, End to End

Assume a chat prompt of 1,024 tokens and a router that chooses P0 and D2.

1. The router creates two coordinated legs

The P leg keeps the original prompt but caps generation at one token and marks the request as producing KV for a remote decoder. The D leg carries the original generation limit and marks the prompt as remotely prefetched. A shared request identity joins the two legs.

The push-mode reference router shows the concrete request fields in PushProxy._push_completion():

P receives max_tokens=1, do_remote_decode=true.
D receives do_remote_prefill=true and the same X-Request-Id.
Only D’s output is returned to the client.

The first token computed on P is a handoff boundary, not the user-visible stream. D recomputes the final prompt position when required so sampling remains attached to D’s local execution state.

2. D treats the remote prompt as a cache candidate

When D first admits the request, the scheduler performs its normal local prefix lookup and then calls the KV connector for an external match in Scheduler.schedule().

For NIXL pull mode, NixlPullConnectorScheduler.get_num_new_matched_tokens() reports how many prompt tokens can arrive remotely and whether the load is asynchronous. The scheduler can then reserve local destination blocks without recomputing the entire prompt.

3. The connector binds remote blocks to local blocks

After allocation, NixlPullConnectorScheduler.update_state_after_alloc() records the request, local destination block IDs, and P’s remote engine/block metadata. The flag is consumed once so preemption or rescheduling does not start duplicate transfers.

The scheduler packages this plan into opaque connector metadata through Scheduler._build_kv_connector_meta(). The scheduler coordinates ownership; it does not copy tensors itself.

4. Worker connectors move the KV

The model-runner connector context binds scheduler metadata, starts background loads, waits for required saves, and returns completion/error information in KVConnectorModelRunnerMixin._get_kv_connector_output().

In pull mode, D’s NixlPullConnectorWorker.start_load_kv() maps logical blocks to physical blocks, establishes an out-of-band handshake if needed, and posts asynchronous NIXL reads. Transfer completion is polled on later engine steps without stalling the scheduler process.

5. P leases source blocks instead of freeing them

At P request completion, NixlPullConnectorScheduler.request_finished() returns the remote engine identity, host, port, block IDs, token count, and block expiry. It also requests delayed freeing when transferable blocks exist.

The ordinary scheduler cleanup path honors that ownership handoff in Scheduler._free_request(). The default P lease is finite; heartbeats extend it while D is queued. This is why router delay and decode queueing consume P-side KV capacity even after prefill compute has finished.

6. D becomes schedulable only after the transfer completes

Worker completion flows back to Scheduler._update_from_kv_xfer_finished(). A finished receive makes the waiting D request eligible for scheduling; a finished send lets P finally free the leased source blocks.

D then performs decode normally and streams the visible response. The final OpenAI-compatible chat response can propagate connector metadata through ChatCompletionResponse.kv_transfer_params. A stateful router uses this for bidirectional multi-turn reuse.

Pull Mode vs. Push Mode

Question	NIXL pull (`NixlConnector`)	NIXL push (`NixlPushConnector`)
Who initiates the data operation?	D reads P’s registered memory	P writes into D’s registered memory
What must the router pass to D?	P’s engine coordinates and remote block IDs	P coordinates and shared request ID; no P block IDs
When can transfer start?	After P exposes its block metadata	After D allocates and registers destination blocks and P has finished blocks
Natural control dependency	P response precedes D transfer	D registration and P completion are matched asynchronously
Main operational risk	Source lease expires before D reads	Registration or completion never finds its peer

Push mode changes the handshake, not the scheduler’s semantic result. D still claims the prompt as externally computed and waits for valid local KV blocks. Its scheduler records D’s allocated blocks and P’s coordinates in NixlPushConnectorScheduler.update_state_after_alloc().

The worker thread then matches D registrations with P’s finished blocks and posts the write in NixlPushConnectorWorker._push_writer_loop().

Evidence: the push proxy comments say the P and D HTTP requests are fired concurrently, but the implementation first drains P’s response and only then constructs D’s streaming request. The data-plane matcher still tolerates either arrival order, but this demo should not be treated as proof of optimal overlap or as a production router.

Start with pull mode unless the target platform, security model, or network topology specifically favors remote writes. Benchmark both modes on the real fabric; static code structure cannot establish which is faster.

Independent Scaling Is the Point—and the Trap

An XpYd deployment can scale P and D independently, but the ratio must follow measured demand rather than GPU counts alone.

P capacity is governed by prompt-token arrival rate, prompt length, prefill parallelism, and how long completed blocks remain leased.
D capacity is governed by active sequences, output length, per-token latency, and D-side KV capacity.
The router must consider queue depth and KV locality, not just round robin. A P with free compute can still be a poor choice if its block lease is likely to expire before the selected D admits the request.
The network must sustain KV bytes per second at the chosen block layout. Otherwise PD merely moves the latency bottleneck from compute interference to transfer queueing.

A rough capacity model is:

P demand  ~= prompt tokens / second
D demand  ~= active sequences * decode steps / second
KV fabric ~= completed prompts / second * transferable KV bytes / prompt

These are sizing dimensions, not a throughput prediction. Measure TTFT, time in the D remote-KV wait state, transfer P50/P90, bytes per transfer, descriptor count, failed transfers, and expired P leases together.

Compatibility and Correctness Gates

NIXL’s handshake checks more than reachability. P and D must agree on vLLM and connector version, model shape, attention backend, KV dtype, and compatible speculative-decoding configuration. The pinned compatibility rules and known model restrictions are summarized in NixlConnector configuration notes.

Before rollout, validate:

The exact model revision, tokenizer/chat template, KV dtype, and attention backend on both pools.
P and D produce identical output to a co-located baseline for short, long, prefix-cached, structured-output, logprob, and speculative requests.
The router forwards one stable request identity and the connector metadata from the chosen P to the chosen D.
Side-channel host/ports are reachable from every relevant worker, with no port collision inside a host.
Different P/D tensor-shard counts, block sizes, and KV layouts are supported by the exact model family. Do not disable compatibility hashing merely to make a handshake pass.
Abort, timeout, P loss, D loss, router retry, and lease expiry do not leak blocks or generate from partially loaded KV.

Failure Policy: Fail or Recompute

The decode pool can either fail a request when remote KV loading fails or recompute the missing prompt locally. vLLM documents both choices in KV Load Failure Policy.

Policy	Benefit	Cost	Recommended use
`fail`	Preserves decode isolation and exposes infrastructure faults	Client sees an error unless the router retries safely	Production default when tail ITL matters
`recompute`	May salvage an individual request	Injects prefill work into D and can disturb every active decode	Controlled degradation only after load testing

Router retries are not automatically safe. A retry must know whether P blocks are still leased, whether D received any blocks, and whether any output has already reached the client. Treat this as a distributed request-state machine, not a stateless HTTP retry.

Multi-Turn Requests

In ordinary one-way PD, every new turn asks P to recompute the entire expanded conversation even though D still owns the previous turn’s generated KV. Bidirectional transfer lets a stateful router cache D’s returned transfer metadata, send it to P on the next turn, and then transfer only the newly computed suffix back to D.

This saves repeated prefill work but adds two hard requirements:

conversation affinity and metadata lifetime become router state;
the next prompt’s token sequence must actually extend the cached sequence.

If a client removes hidden reasoning tokens or otherwise rewrites history, the visible conversation may no longer match D’s cached token positions. The router must detect that mismatch and fall back to a full prefill.

Deployment Checklist

What Static Reading Cannot Prove

The P:D ratio that minimizes cost under a real arrival distribution.
Whether KV transfer overlaps enough compute to improve TTFT.
Whether pull or push performs better on a particular NIC/GPU topology.
Tail behavior during congestion, lease renewal, preemption, or partial transfer failure.
End-to-end correctness for the chosen model and connector combination.

Those require an accuracy suite, transport telemetry, queue-state metrics, and failure injection on the target deployment.

One Thing to Remember

The router is part of the inference engine: it chooses both compute phases, carries the KV ownership contract between them, and determines whether the decode scheduler sees a valid prompt cache or a distributed failure.
